Description
- Hign-concerned Chemical: None
- RAID Supported: YES
- Processor compatibility: Intel Xeon E Series
- Ports: PCI-Express X1
- Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Server,Scientific Computing
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),USB 3.0 Connector,8-pin +12V Power Connector

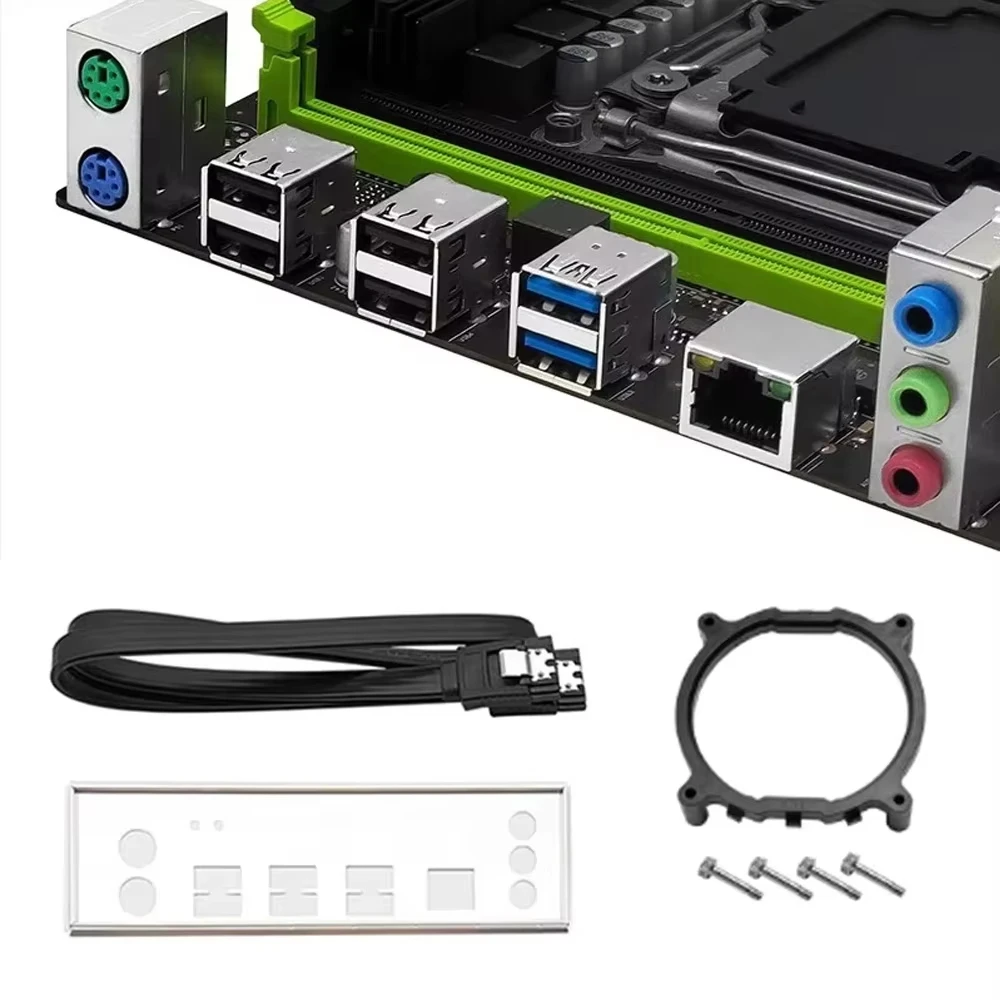

- Back I/O Ports: 3 x Audio Jacks,2x USB 3.2/3.1 Gen 1,4 x USB 2.0
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- SATA RAID: 0
- Supports M.2 SSD: 2280,22110
- Number of M.2: 1
- Number of SATA Ports: 2
- Storage Interface Type: SATA 3,M.2 (NVMe),M.2(SATA)
- Number of PCI: 1
- Number of PCIe x 1: 1
- Number of PCIe x 16: 1
- PCI – E standards: PCI – E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Memory channel: Double
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- With CPU: No
- Chipset: c612
- Application: Desktop,Server
- Socket Type: LGA 2011-3
- Brand Name: SOYO
- Special Features: None
- Origin: Mainland China

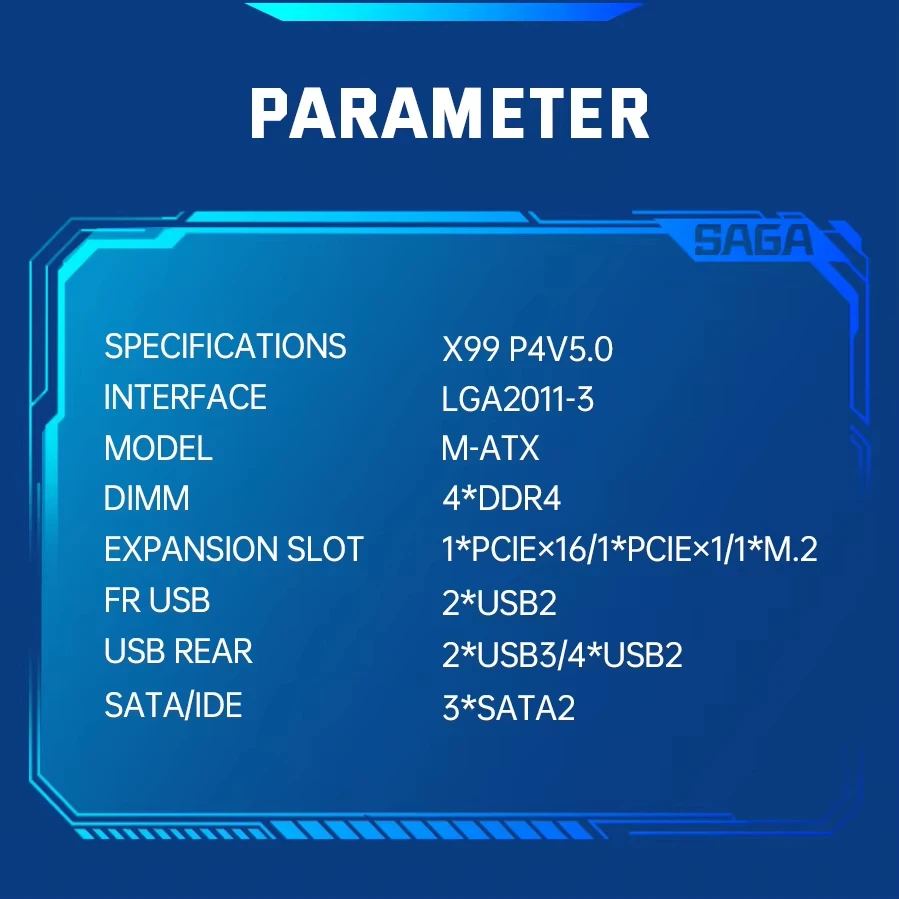

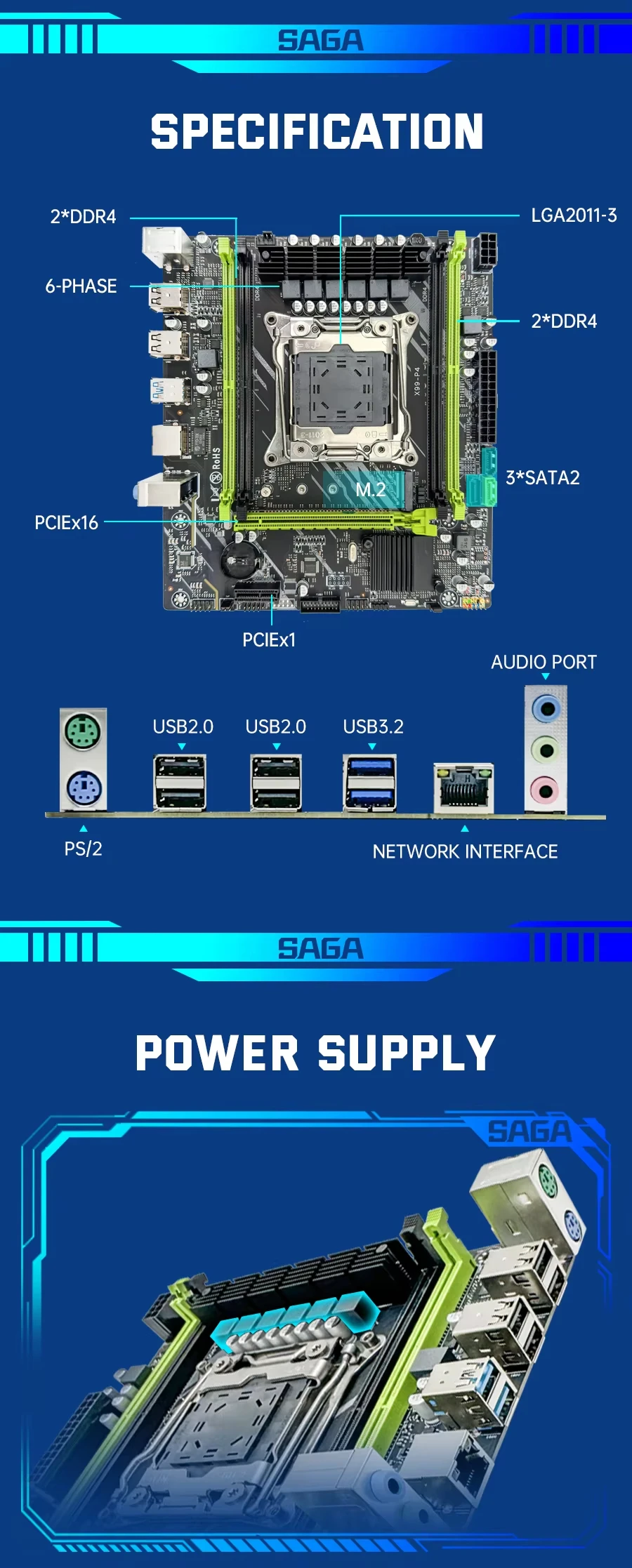

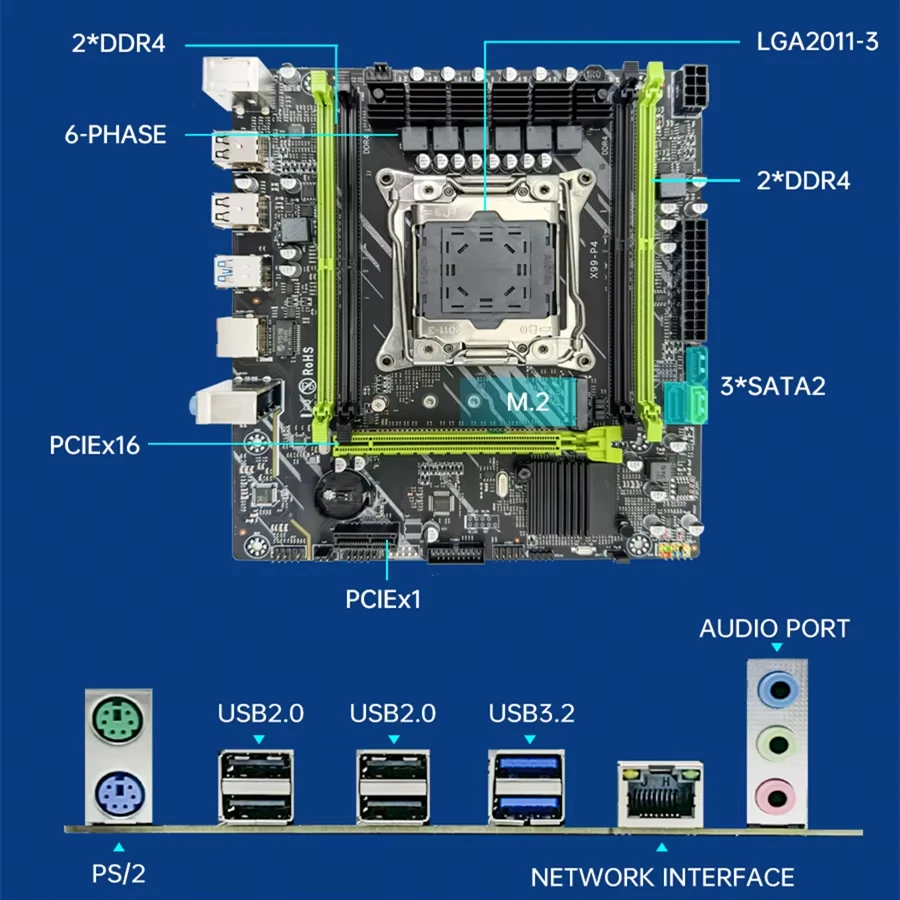

Specifications:
Ethernet: 1 Realtek Gigabit Ethernet card
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)
USB Port: 4 USB ports 2 0 interface;
PCIE: 2 (1 PCIE X16, 1 PCIE X1)
USB ports: 4 (one USB port can be connected to two USB 2.0 ports)
Internal connectors
SATA interface: 3 SATA interfaces (1 SATA3 0.2 SATA2.0)
ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket
Audio: 1 2x5PIN pin
Jlpc: 1 2x5pin battery
M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATAM. 2)

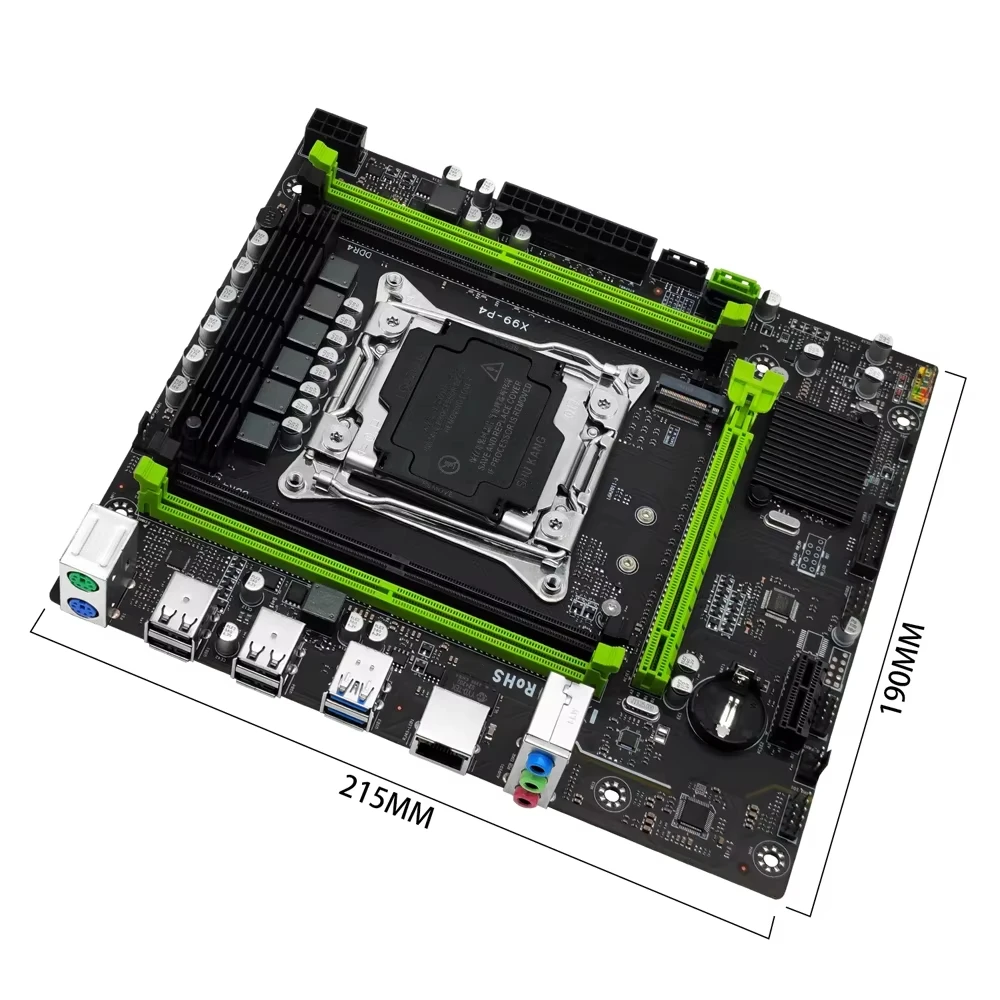

M-ATX【215 x 190】mm
TIP: The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
