Description
- Hign-concerned Chemical: None
- RAID Supported: YES
- Processor compatibility: Intel Xeon E Series
- Ports: PCI-Express X1
- Usage Scenario: Gaming,Audio & Video,Household,Office,Video Production,Server
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),Chassis(SYS) Fan Connector(s),8-pin +12V Power Connector
- Back I/O Ports: 1x RJ45,PS/2 Combo,3 x Audio Jacks,4x USB 3.2/3.1 Gen 2,4 x USB 2.0
- Support USB Type: USB 2.0,USB 3.0
- Max LAN Speed: 1000Mbps
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- SATA RAID: 0
- Supports M.2 SSD: 2280,22110
- Number of M.2: 2
- Number of SATA Ports: 8
- Storage Interface Type: SATA 3,M.2 (NVMe),M.2(SATA)
- Number of PCI: 2
- Number of PCIe x 1: 2
- Number of PCIe x 4: 1
- Number of PCIe x 16: 1
- Crossfire: crossfire
- PCI – E standards: PCI – E 3.0
- Number Of Memory Slots: 8
- Support Memory Type: DDR4
- Memory channel: Four
- Package: Yes
- Maximum Ram Capacity: 256GB
- Chipset Manufacturer: Intel
- With CPU: No
- Chipset: c612
- Application: Desktop,Server
- Socket Type: LGA 2011-3
- Brand Name: SOYO
- Special Features: Cooling Armor
- Origin: Mainland China
Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.

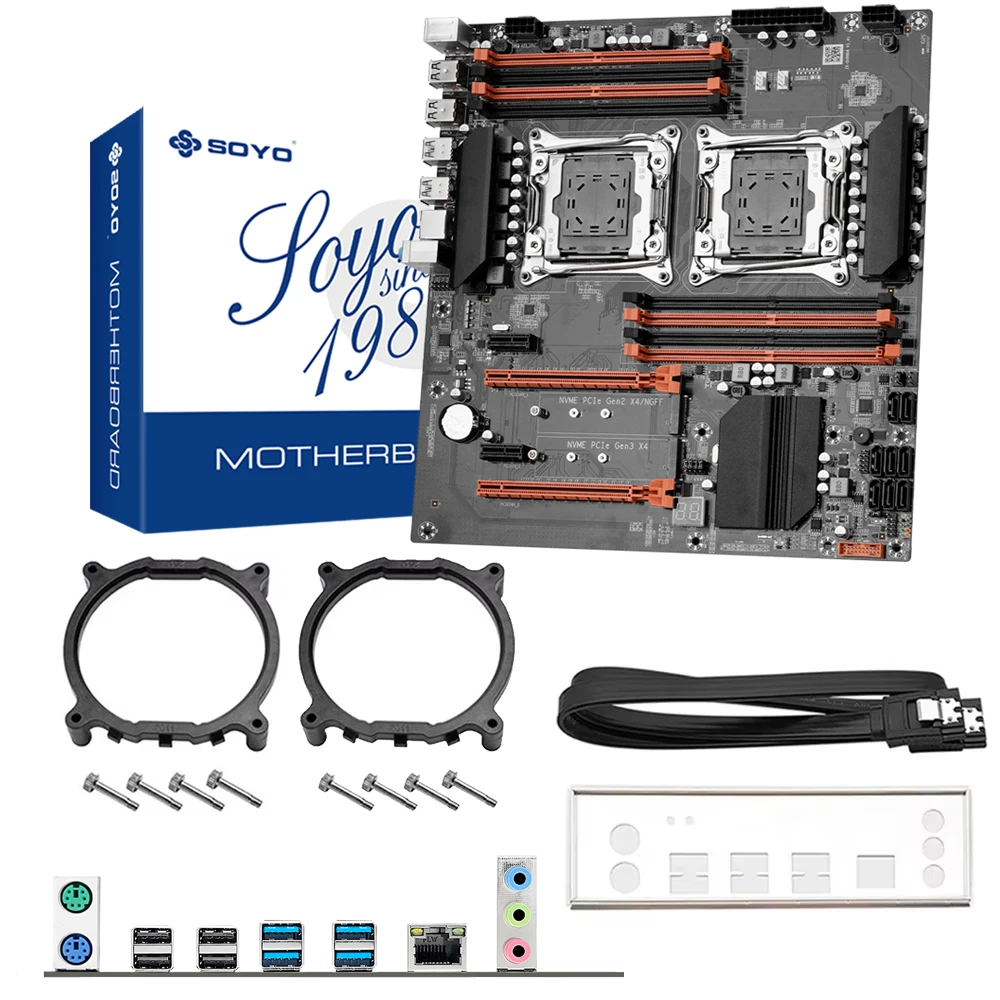

Differences between packages
Motherboards: 1*MG-X99 Dual D4 motherboard
Motherboard+CPU: 1*MG-X99 Dual D4 +E5 2680 V4 CPU*2
Motherboard+CPU+RAM: 1*MG-X99 Dual D4 +E5 2680 V4 CPU*2*DDR4 16G*4
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order
CPU:
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
The CPU is used , please don't buy it if you mind

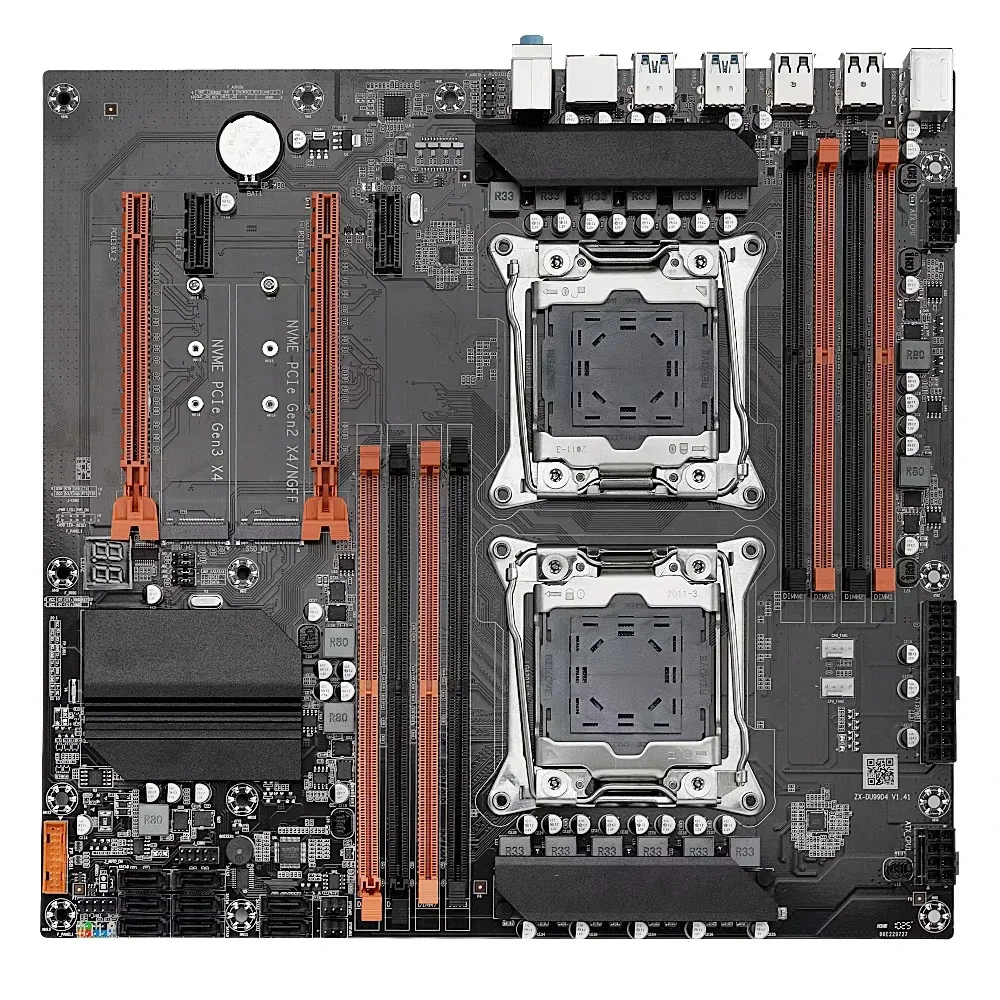

Motherboard Specifications:
Chipset: Intel X99 (C612 Chip)
Memory System:
Four-Channel DDR4 Slots
Supports 2133/2400/2800MHz Frequencies
Maximum Expansion: 256GB (32GB Single Stick Support)
Storage Expansion:
6×SATA 3.0 6Gbps Ports
1×M.2 PCIe 3.0×4 Slot (NVMe Support)
1×M.2 SATA/PCIe Dual-Mode Slot
Graphics Support:
2×PCIe 3.0×16 Slots (AMD CrossFire Ready)
2×PCIe 2.0×1 Slots
Networking:
Realtek RTL8111H Gigabit LAN (PXE Boot Support)
Audio: Realtek ALC662 6-Channel High-Fidelity Sound

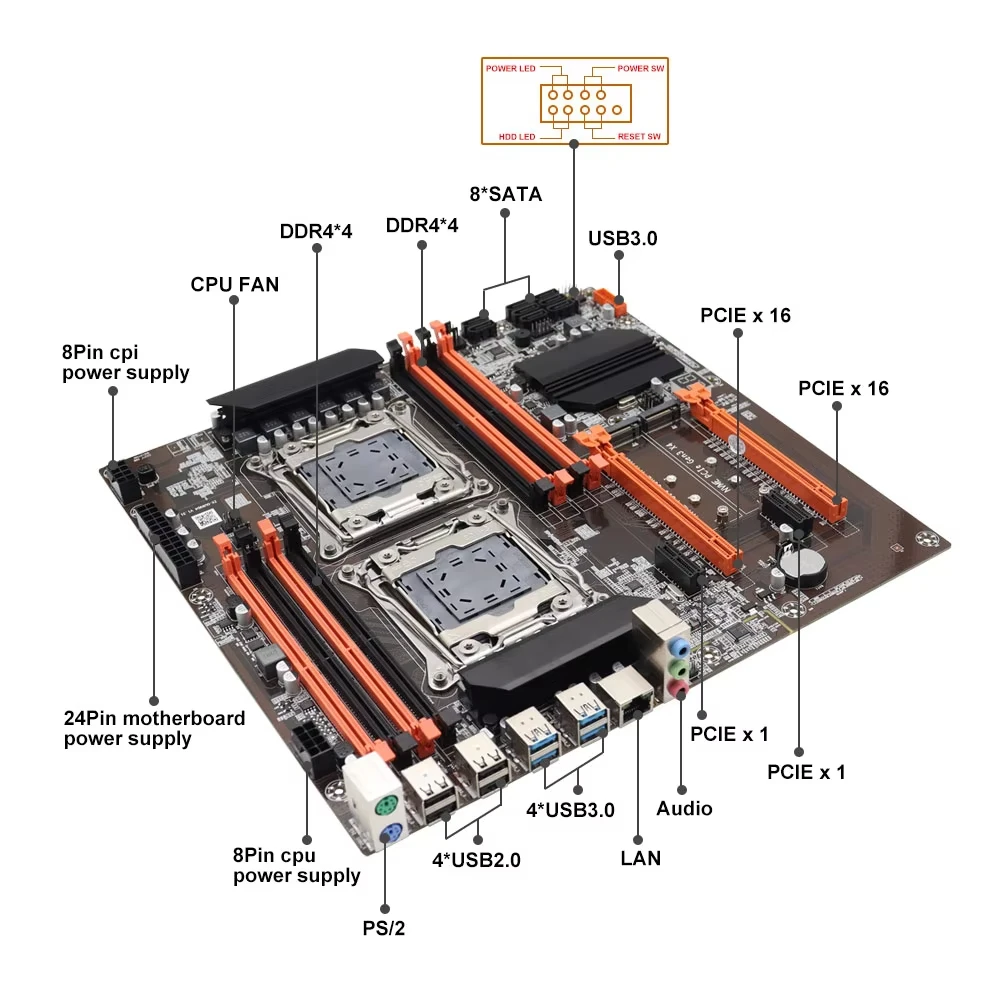

I/O Ports:
4×USB 3.0 + 4×USB 2.0
1×PS/2 Combo Port
1×COM Serial Port
1×F_AUDIO Header
Power Connectors: 24pin + 2×8pin ATX
Dimensions: 290×280mm (ATX Form Factor)
