Description
- Hign-concerned Chemical: None
- RGB: No
- Overclocked: No
- Package type: Retail
- Power Connector: 8pin
- Product Category: Desktop Graphics Cards
- Usage Scenario: Gaming,Audio & Video,Household,Office,DESIGN
- Product Features: VR READY
- Max Resolution: 4096 x 2160
- Chip Process: 16nm
- Stream Processors: 1920
- DirectX: DirectX 12
- Cooler Type: Double fan
- Output Interface Type: DVI-D,DisplayPort x 3,HDMI 2.0 X 1
- Video Memory Type: GDDR5
- Memory Interface: 256 Bit
- Chipset Manufacturer: NVIDIA
- Package: YES
- Core Clock(Mhz): 1620MHz
- Memory Clock(Mhz): 2052MHz
- Application: Desktop
- Interface Type: PCI Express 3.0 X16
- Video Memory Capacity: 8GB
- Brand Name: MLLSE
- Origin: Mainland China

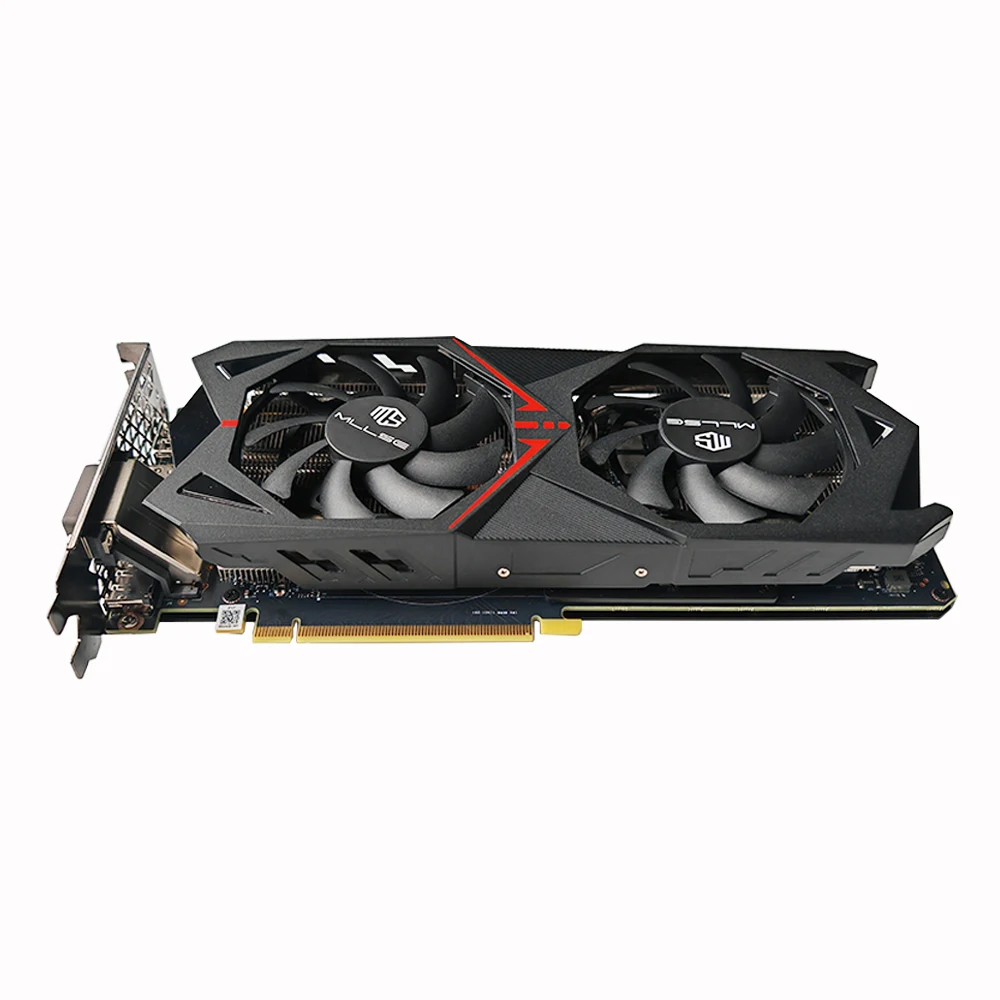

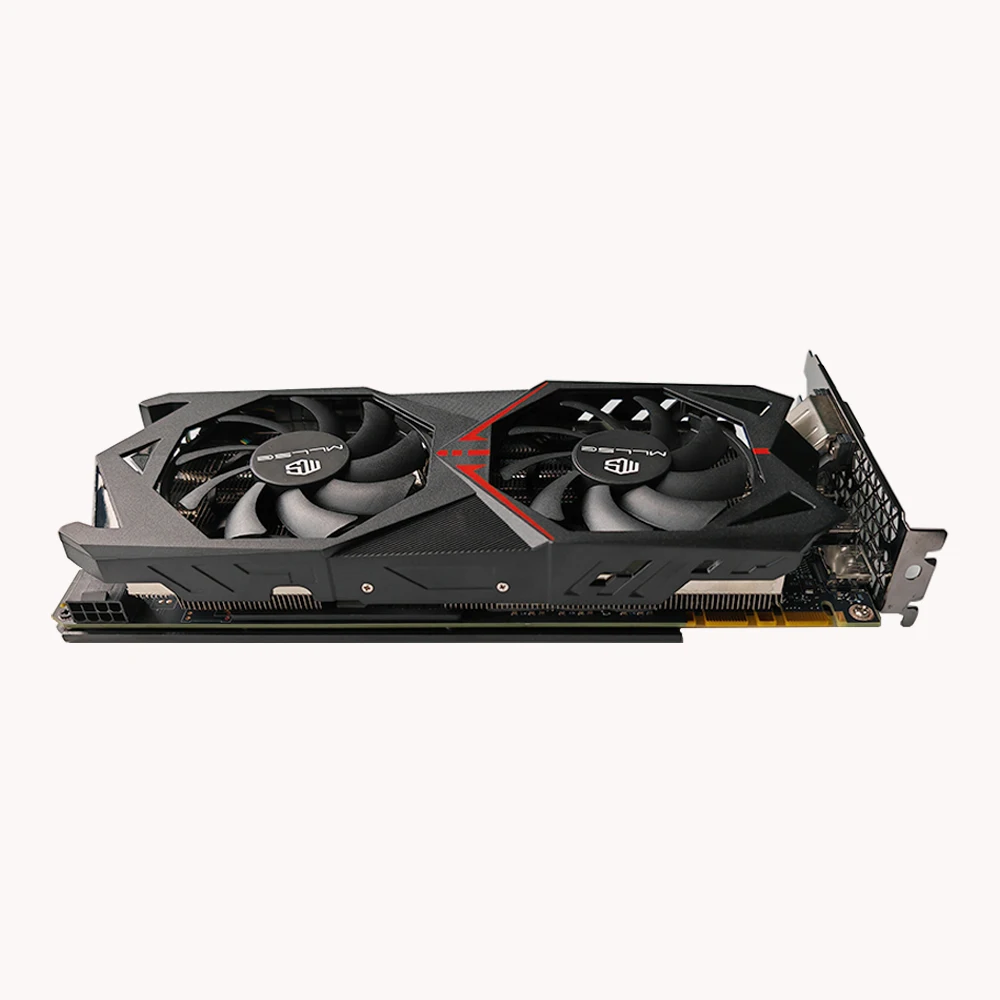

GPU Model: GTX 1070 8GB
Graphics Ram：GDDR5
Graphics Ram Size：8GB
Memory Bus Width：256Bit
Power Consumption：150W
Core Clock：1620MHz
Power Interface：8 PIN
Recommeded Power：550W
Memory Clock：2052MHz
Graphics Size：290*115*43mm
Interface Type：PClExpress 3.0
Video Output：HD+DP*3+DVI
Dual-fans cooling system — Strong wind
High speed and large size dualfan design, double the wind to introduce airflow.
and thestrong wind will dissipate heat faster.
Direct copper contact Rapid cooling
With the large area heat dissipation fins, it conductsheat quickly, dissipates heat quickly, cools down quickly,and is not afraid of the high temperature of the game under full load

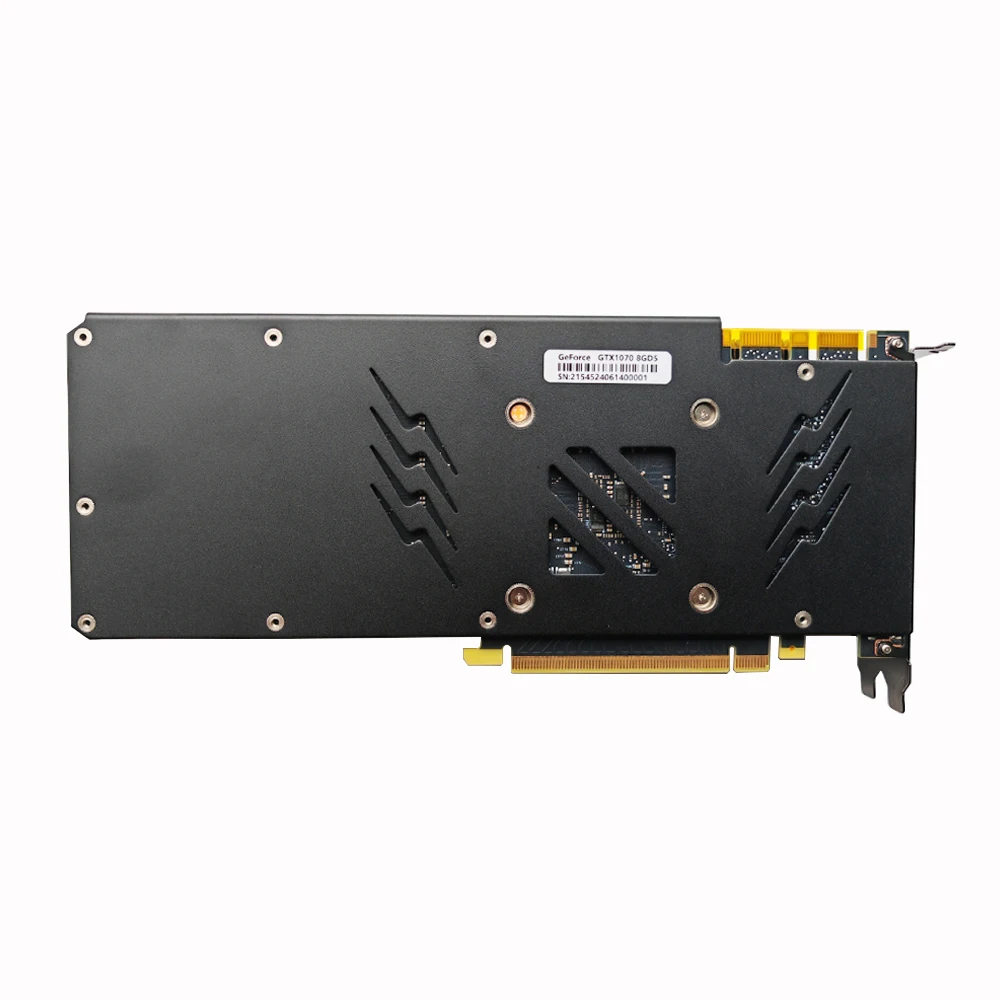

Full Size Metal Backplate Protect the PCB
Full-size backplane reduces graphics card bending and PCB damage.The cutout on the back allows airflow to pass through, further improving heat dissipation
Power Consumption 150W
High Performance Low Power Consumption
Being relaxed about gaming one whole day
8K HD Display
DP+HD two mainstream high-definition outputs Smoothinterface and high-definition game visual experience.
GTX1070 8GB Test Chart
Realistic photo display
Install the graphics card
1.Turn off the computer and unplug the power cord.
2.Remove the chassis cover and find the PCle slot.(A)
3. Removethe metal back plate at the expansion slot you want to insert the graphics card in.
4. Insert PCle connector (B)to PCle slot and make sure that it is firmly inserted
5. Fix the graphics card to the expansion slot with screw (C)
6. Co nectthe coresponding PCle power connector (D) to he independent power supply inter face (E) on graphics card
