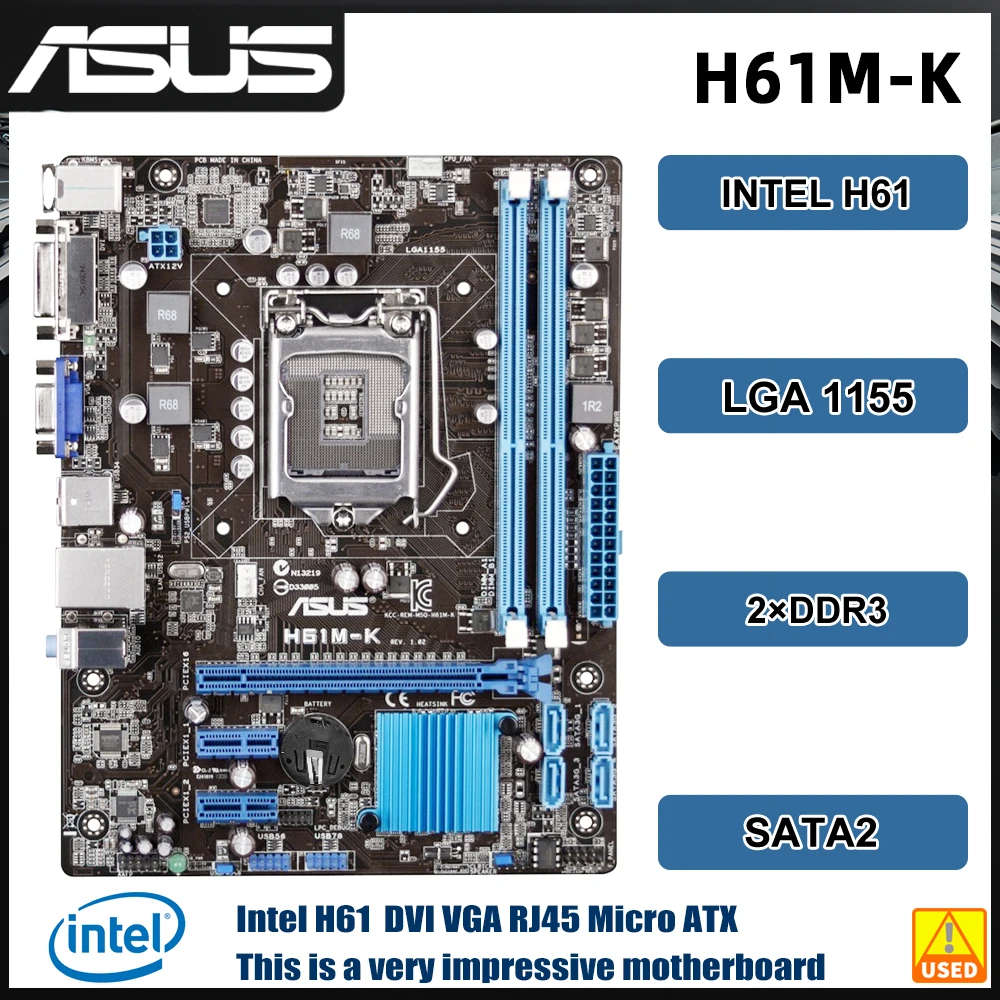

Description
- Hign-concerned Chemical: None
- RAID Supported: No
- Processor compatibility: Intel Core
- Usage Scenario: Household,Office,others
- Back I/O Ports: 1x RJ45,VGA(D-Sub)
- Support USB Type: USB 2.0
- Onboard LAN: 1x RJ45
- Number of M.2: 0
- Number of SATA Ports: 4
- Storage Interface Type: SATA 2
- Number of PCI: 0
- Number of PCIe x 1: 0
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 1
- PCI – E standards: PCI – E 2.0
- Number Of Memory Slots: 2
- Support Memory Type: DDR3
- Quality Certification: ce
- Memory channel: Double
- Form Factor: CeB
- Package: No
- Maximum Ram Capacity: 16 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- With CPU: No
- Chipset: Intel H61
- Application: Desktop
- Socket Type: LGA 1155
- Brand Name: Asus
- Special Features: None
- Origin: Mainland China
Detailed parameter
Integrated chip sound card/network card
Main chipset Intel H61
Chipset Description Intel H61 chipset is used
Display chip CPU Built-in display chip (CPU support required)
Audio chip Integrated with Realtek ALC887 8-channel sound chip
Nic chip Onboard Realtek RTL8111F Gigabit NIC
Processor specification
CPU type Core i7, i5, and i3
CPU slot LGA 1155
CPU Description Intel 22nm and 32nm processors are supported
Memory specification
Memory Type 2 x DDR3 DIMMs
Maximum memory capacity 16GB
Memory Description Supports dual-channel DDR4 memory of 1600 MHZ, 1333 MHZ, and 1066MHz
I/O interface
USB port 8 x USB2.0 port (4 built-in +4 backplane)
Video port 1 x VGA port, 1 x DVI port
One 4-pin power interface and one 24-pin power interface
Other ports 1 x RJ45 network interface, audio interface, 1 x PS/2 mouse, 1 x PS/2 keyboard interface
Plate cut
Main board type Micro ATX board type
Overall dimensions 22.6×17.5cm
